Heatstrip® Elegance + Remote
$799.00 - $899.00
With superior technology and style, world-leading design and unique “off-white” colour, the new HEATSTRIP® Elegance with Remote will blend in with the white ceiling in your alfresco-area, with the easy control of heat settings.
FEATURES
- Electric radiant outdoor heater
- 2 Models available THE2400R (2400W) & THE3200R (3200W)
- New control panel with low, high temperature settings and timer
- Slimline design and “off-white” colour
- New compact and higher output design
- Corrosion-resistant for most environments
- Convenient DIY installation for the 2400W model. The 3200W model must be hardwired
- 3-year residential and 2-year commercial warranty.
Features
- Electric radiant outdoor heater
- 2 Models available THE2400R (2400W) & THE3200R (3200W)
- New control panel with low, high temperature settings and timer
- Slimline design and “off-white” colour
- New compact and higher output design
- Corrosion-resistant for most environments
- Convenient DIY installation for the 2400W model. The 3200W model must be hardwired
- 3 year residential and 1 year commercial warranty.
The Range
THE2400R - $799
THE3200R - $899
Accessories
THERAC-056
(Flush Mount for THE2400R)
THERAC-057
(Flush Mount for THE3200R)
THEAC-043
Set of 300mm Extension Poles
THEAC-044
Set of 600mm Extension Poles
THEAC-045
Set of 900mm Extension Poles
THEAC-046
Set of 1200mm Extension Poles
ZBRAK-113W
Standard Mounting Brackets Kit
Video
Positioning
The table outlines the maximum coverage of each HEATSTRIP® Elegance model based on 3 different scenarios with direct overhead mounting at minimum installation height. For example, for an outdoor area that is protected from prevailing winds by walls, café blinds etc, Model THE2400R will cover a maximum of 4.8m2 and Model THE3200R will cover a maximum of 6.4m2.
For the majority of outdoor applications, the most effective method is to spot heat a table or similar area. The below diagrams provides an easy selection guide for the approximate model and quantity of heaters required to heat common residential table settings. Selections are based on HEATSTRIP® Elegance with remote being mounted at 2.4m from the floor in an undercover fully enclosed outdoor area.
For angled wall mounting applications, the coverage is reduced by up to 40%.
| THE2400R | 6 | 4.8 | 4 |
| THE3200R | 8 | 6.4 | 5.3 |
Mounting

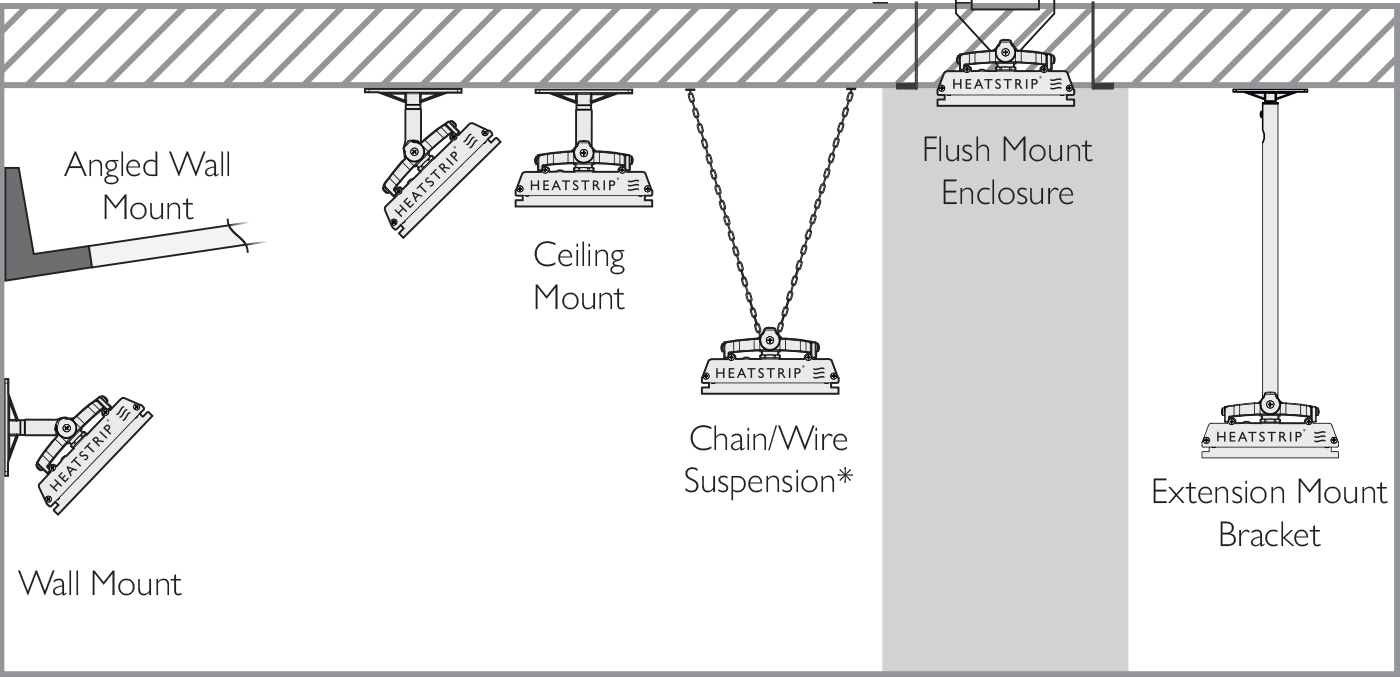

The installation of HEATSTRIP® Elegance is simple and easy with the standard mounting brackets supplied. For other locations, there are a range of mounting options available – (refer to below diagrams). The HEATSTRIP® Elegance can be mounted directly to the ceiling; angled downwards on a wall; fitted flush with the ceiling; suspended on chains or poles; attached to beams/poles/umbrellas; mounted end-to-end, or 2 units together.
- Minimum mounting height (including flush mount) 2.1m
- Ideal mounting height (including flush mount) 2.2m – 2.5m
- Maximum mounting height (including flush mount) 2.7m/2.8m (indoors)
The mounting height of the electric heater can have a significant impact on performance. For mounting heights higher than the ideal range, we recommend the use of wires/chains or optional extension poles to reduce the height and ensure the heater is within the ideal range. Heater performance may be affected if outside this range.
*Chain/wire not included
Specifications
| THE2400R | 2400 | 10 | 1306 X 170 X 42.7 | 7 | 1000 | YES | 4-5 |
| THE3200R | 3200 | 13.3 | 1710 x 170 x 42.7 | 9 | 1000 | NO | 5-6 |
Materials of Construction: High temperature off-white ceramic coated extruded alloy. IP55.
Downloads
Need a little assistance?
Need assistance working out which heater is best for your space? Use our Heatstrip® Specifier to upload photos or plans of your area so we can offer you the best solution for you.
